In the rapidly evolving landscape of medical technology, surgical robots are becoming increasingly sophisticated and interconnected. With this advancement comes a critical need for robust cybersecurity measures to protect patient safety and sensitive medical data. Today, we'll explore a novel approach to securing these systems: data-centric threat modeling. Our approach is aligned with the FDA premarket guidance, recommending threat modeling at an early stage of the system to help manage and respond to cyber threats.

As we delve into the world of surgical robots, keep in mind that the challenges and solutions we'll examine are mirrored in many other domains. The need for robust cybersecurity measures is paramount whether you're dealing with a surgical robot, an autonomous vehicle, a smart grid system, or a military drone. The data-centric threat modeling approach we discuss in this blog is applicable to any industry dealing with mission-critical, data-intensive systems.

The Surgical Robot System

To illustrate the principles of data-centric threat modeling, we'll use a surgical robot system as our primary example. Our surgical robot system consists of several interconnected components, that form a distributed system, communicating via the Data Distribution Service (DDS^™) standard:

• Surgical Robot Arm
• Arm Controller/ iPad Controller
• Surgical Orchestrator
• Patient Monitor
• Video Camera

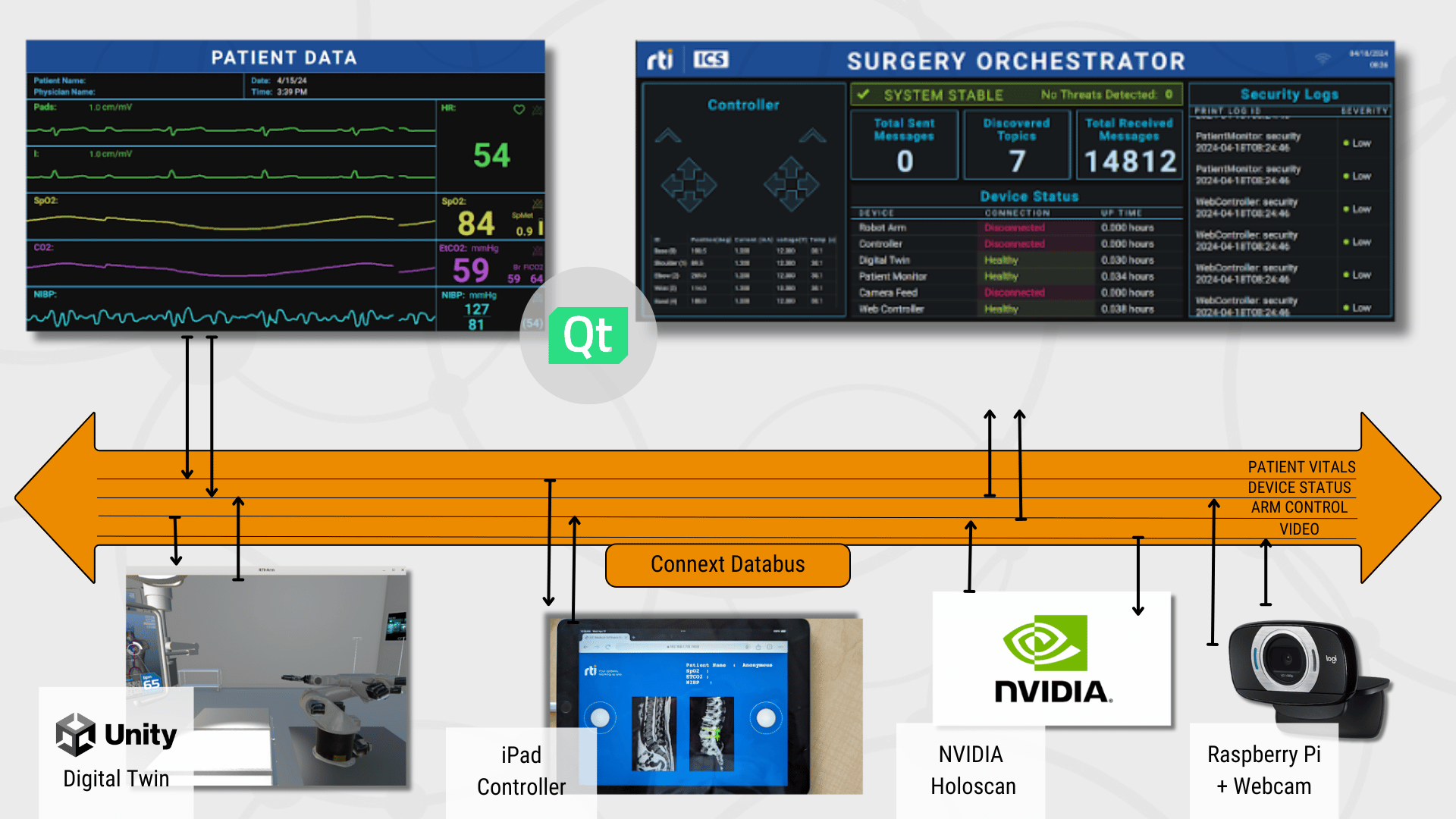

Figure 1: Architecture Overview of the Surgical Robot Demonstration. Excerpt from RTI MedTech demo video.

DDS-Security^™ takes the data-centric approach to secure the data in motion instead of communication channels. This approach is well aligned with the requirements of a zero-trust architecture, and it provides more granular control and flexibility in protecting specific data elements. Distributed systems running DDS can define what data should be protected, and how it should be protected. More importantly, security decisions can be modeled during design time, and be applied to the system through configuration files. No application-specific code is needed.

All these system components work together in perfect harmony. But what happens if the system is under attack?

Attack Scenarios

Let's consider some potential attack scenarios that could threaten the security and safety of our surgical robot system:

1. The Malicious Device Attack

Scenario: An attacker manages to introduce a malicious device into the hospital network, mimicking a legitimate patient monitoring system component. This rogue device starts injecting false data into the system.

Potential Impact: Surgeons and automated systems might make incorrect decisions based on the false data, potentially endangering the patient's life.

2. The Network Insider Threat

Scenario: An employee with access to the Video Camera system attempts to steal sensitive patient data by intercepting data published by the Patient Monitor.

Potential Impact: This could lead to a serious breach of patient privacy, potentially exposing confidential medical information.

3. The Compromised Reader Attack

Scenario: An exploit to a software vulnerability compromised the Surgical Orchestrator device. The application running on the device was originally a legitimate reader authorized to read Arm Control commands. Therefore, it has the key used to sign the topic messages. Now, it attempts to disturb surgeries by sending signed shutdown commands to the robot arm.

Potential Impact: Unexpected movements of the surgical robot could cause serious harm to the patient during an operation.

Modeling Attacks with Data-Centric STRIDE

Now that we've examined some potential attack scenarios, let's explore how we can model these threats using a data-centric adaptation of the STRIDE threat modeling framework.

STRIDE, which stands for Spoofing, Tampering, Repudiation, Information Disclosure, Denial of Service, and Elevation of Privilege, is a well-established threat modeling methodology. However, it was designed for host-centric systems where end-to-end data flows can be modeled using data flow diagrams (DFDs), and STRIDE threats can then be modeled for each data flow.

Data-centric threat modeling is an innovative method that adapts the well-known STRIDE framework to systems built on data-centric communication architectures. The method defines two trust boundaries:

1. Domain Trust Boundary: Protects against attacks initiated by applications outside of the data-centric robot network.
2. Topic Trust Boundary: Protects against attacks initiated inside the robot data-centric network. This boundary enforces the principle of least privilege within the domain, and maintains integrity and authenticity among authorized, non-compromised applications.

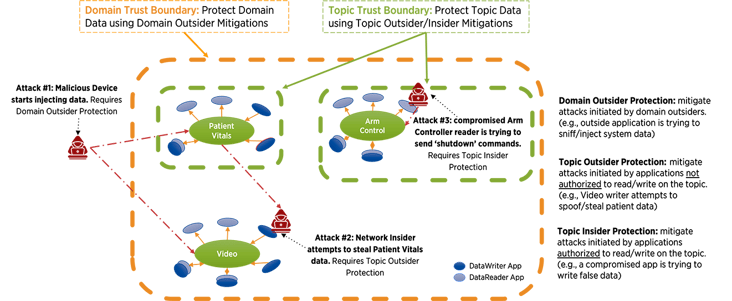

The figure below depicts the two trust boundaries with respect to our medical robot example. The figure also shows that the topic trust boundary consists of three protection layers: Domain Outsider, Topic Outsider, and Topic Insider.

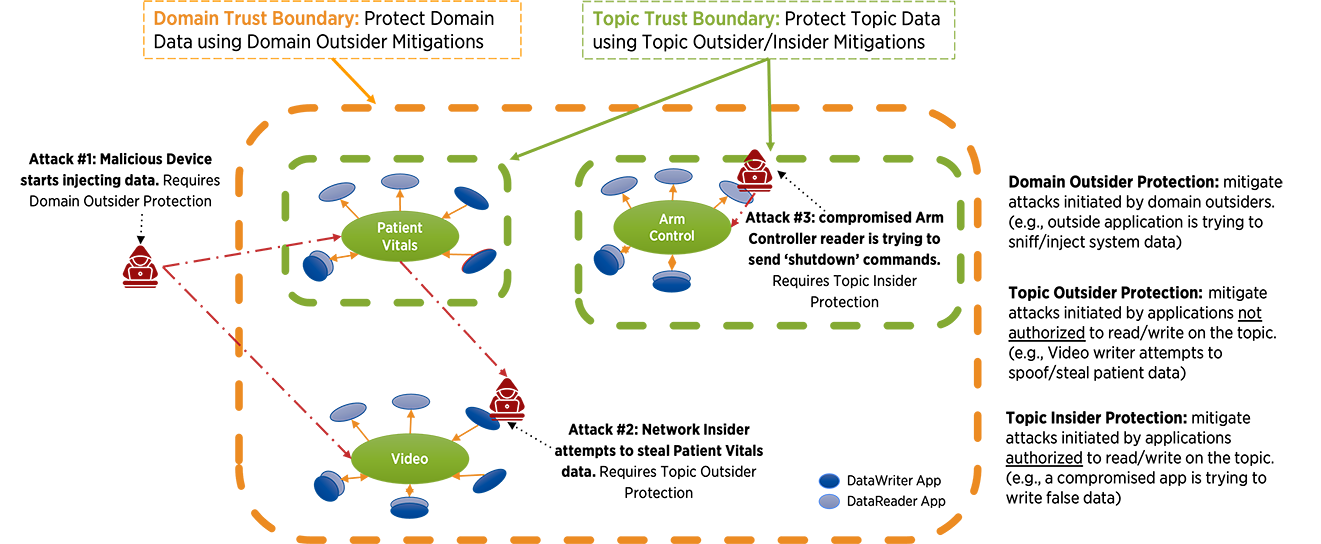

Figure 2: Illustration of two trust boundaries and three protection layers for medical robotics example

Note that these boundaries protect the data itself, not specific data flows between components.  By focusing on the data, we can apply consistent security policies regardless of how the data moves through the system or which components interact with it. This approach is particularly powerful in distributed systems where data flows can be complex and dynamic.

Solution: Data-Centric Mitigations

Conclusion

Data-centric threat modeling represents a significant advancement in cybersecurity for complex, distributed systems like medical robots. By focusing on protecting the data itself and leveraging the powerful features of middleware such as DDS, we can create more secure, flexible, and scalable systems. As our simple example scenarios demonstrate, this approach allows us to systematically identify and mitigate a wide range of potential threats.

To assist with threat modeling, RTI offers a DDS-Security Plugin for Dassault Cameo System Modeler^™ (previously NoMagic MagicDraw). This plugin enables Data-Centric STRIDE modeling, maps threats to DDS-Security Policies, and auto-generates security configuration files to help support the cybersecurity requirements for FDA submissions.

Key features of the Cameo plugin include:

• Data-Centric STRIDE modeling
• Automatic threat-to-policy mapping
• Enhanced security model visualization
• Validated configuration file generation

To learn more about integrating RTI Connext systems with MBSE, visit:

• RTI's MBSE web page
• Data-Centric MBSE value blog post
• Webinar: Incorporating Cybersecurity into System Modeling with DDS, SysML and CATIA Magic
